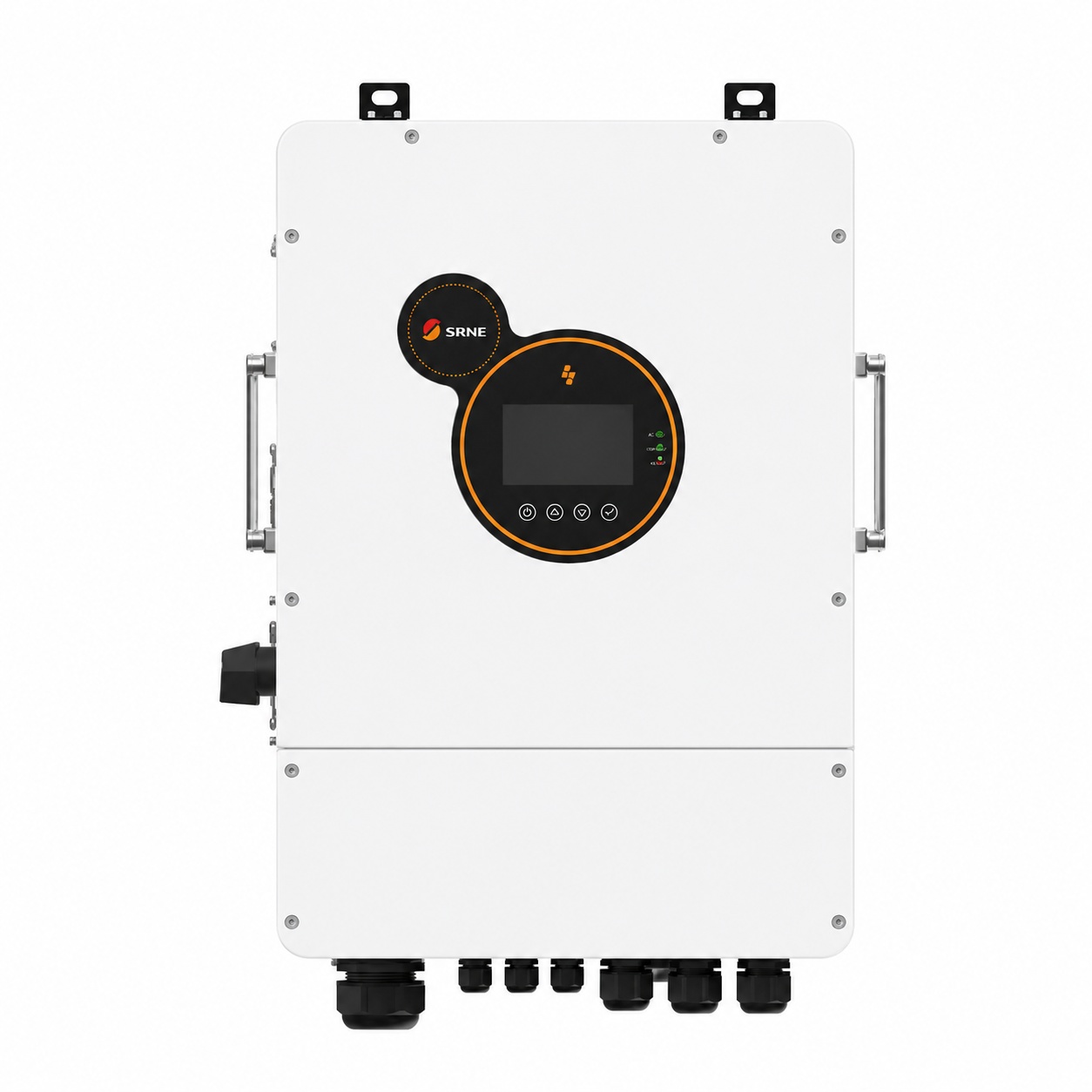

SRNE 12KVA Three Phase Hybrid Solar Inverter – 48V Pure Sine Wave

The SRNE 12KVA Three Phase Hybrid Solar Inverter is a high-performance all-in-one solar power solution designed for commercial buildings, industries, farms, and large residential properties. It features a 12,000W pure sine wave inverter, dual MPPT solar charge controllers, and intelligent battery management for maximum energy efficiency. Compatible with Lithium (LiFePO₄) and Lead Acid batteries, it delivers reliable three-phase power for demanding applications.

Key Features

• 12,000W (12KVA) Three Phase Pure Sine Wave Output
• 48V Battery System
• Dual MPPT Solar Charge Controllers
• Supports up to 18,000W Solar Panel Input
• Maximum PV Voltage: 800V DC
• MPPT Voltage Range: 200–650V DC
• Compatible with Lithium & Lead Acid Batteries
• Solar, Grid & Generator Charging
• 10ms UPS Transfer Time
• LCD Display
• Optional Wi-Fi Remote Monitoring
• Intelligent Cooling System
• Multiple Built-in Protection Features
• IP65 Outdoor Rated Design

Specifications

• Rated Power: 12,000W (12KVA)
• Output Voltage: 230/400VAC Three Phase
• Battery Voltage: 48V DC
• Max Solar Charging Current: 260A
• Max PV Input Power: 9,000W + 9,000W
• Number of MPPTs: 2
• Maximum PV Voltage: 800V DC
• Output Frequency: 50/60Hz
• MPPT Efficiency: 99.9%
• Protection Rating: IP65

Applications

Ideal for commercial buildings, factories, offices, hotels, farms, workshops, and large three-phase hybrid or off-grid solar power systems.
